| Model |

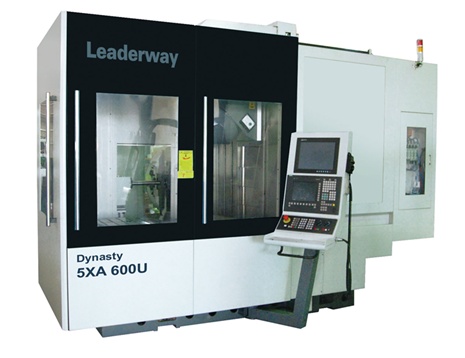

5XA600U |
| Travel |
|
X axis travel |
600(24) |
| Y axis travel |
700(28) |
| Z axis travel |
600(24) |
| Table |
|
| Table Diameter |
600(24) |
| Table Max.load |
700(1540) |
| RPM |
20 |
| Rotatin range |
360 |
| Accuracy |
|
| X/Y/Z positioning |
0.01/15 |
| X/Y/Z repeatability |
0.008/+-5 |
| ATC |
|
| NO. of tools |
30 |
| Universal head45° |
|
| B axis |
0~-180° |
| Rotation speed |
15 |
| Spindle |
|
| Spindle speed |
14000 |
| torque |
115 |
| Spindle power |
30.9 |
| General |
|
| Heigt |
3350 |
| Weight |
12000 |
|
