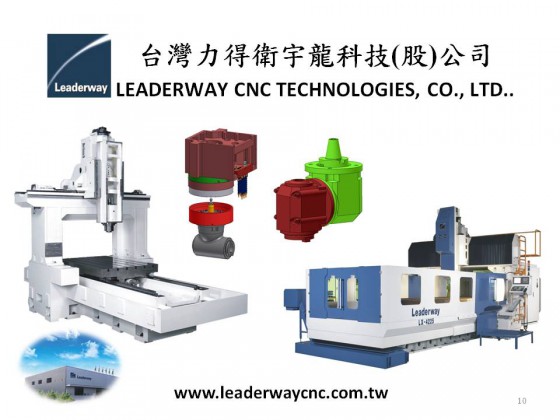

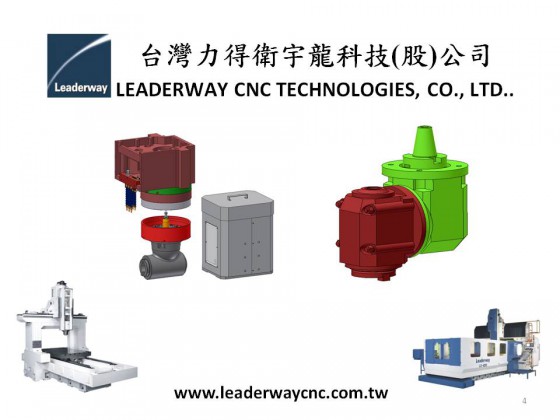

LX1610 大型龍門加工中心機

Model LX1610
Travel
X axis travel
mm(in)
1600(63)
Y axis travel  mm(in)
1000(39)
Z axis travel mm(in)
550(21.6)
Spindle nose to tablemm(in)
200-750(7.8-29.5)
Table
Table heightmm(in)
825(32.4)
T solt size
6-22Tx160
Table Max.loadkg(lbs)
2000(4400)
Table size  mm(in)
1600x1000(63x39.7)
Feedrate
X/Y/Z RapidM/min
20/20/18
X/Y/Z Feed rateM/min
1-10
X/Y/Z Servo powerkW(HP)
6/6/4
ATC
NO. of tools
20
Max. tool weightkg
7
Max. tool Dia without neghbor tool
NA
Spindle
Spindle speed  rpm
10000
Spindle taper
#40
Spindle power  kW(HP)
7.5(9)
General
Weightkg(lbs)
≒17000(37400)
Power capacitykVA
40
Pneumatic source requirementbar
6

LX2210 大型龍門加工中心機

Model LX2210
Travel
X axis travel

mm(in)
2200(87)
Y axis travel
mm(in)
1000(39)
Z axis travel
mm(in)
550(21.6)
Spindle nose to table
mm(in)
200-750(7.8-29.5)
Table
Table height
mm(in)
825(32.4)
T solt size
6-22Tx160
Table Max.loadkg(lbs)
2500(5500)
Table size   mm(in)
2200x1000(87x39.7)
Feedrate
X/Y/Z Rapid traverseM/min
20/20/18
X/Y/Z Feed rateM/min
1-10
X/Y/Z Servo powerkW(HP)
6/6/4
ATC
NO. of tools
20
Max. tool weightkg
7
Max. tool Dia ( No adjacent)
NA
Spindle
Spindle speed  rpm
10000
Spindle taper
#40
Spindle power   kW(HP)
7.5(10)
General
Weightkg(lbs)
≒19000(41800)
Power capacitykVA
40
Pneumatic source requirementbar
6

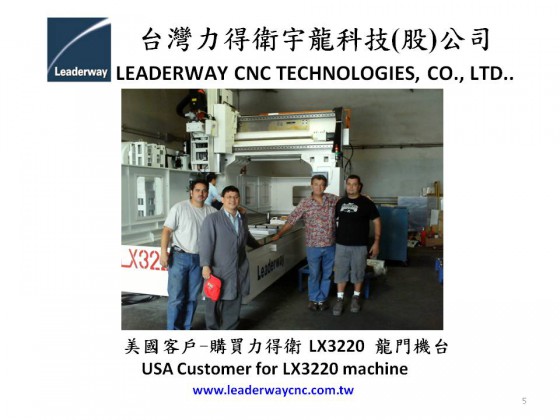

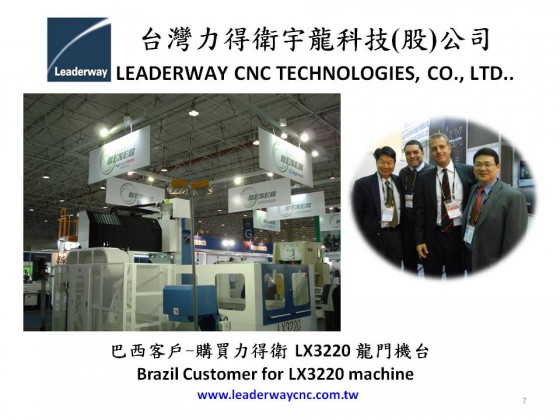

LX3220 大型龍門加工中心機

Model LX3220#40LX3220#50
Travel
X axis travel
mm(in)

3200(125.9)
3200(125.9)
Y axis travel
mm(in)
2000(78.7)
2000(78.7)
Z axis travel
mm(in)
1000(39.7)
1000(39.7)
Spindle nose to table
mm(in)
210~1210(8.26-47.6)
200~1200(7.8-47)
Table
Table height
mm(in)
905(35.6)
905(35.6)
T solt size
9-22Tx200
9-22Tx200
Table Max.loadkg(lbs)
8000(17600)
8000(17600)
Table size
mm(in)
3000X1800(118X70.8)
3000X1800(118X70.8)
Feedrate
X/Y/Z RapidM/min
15/15/10
15/15/10
X/Y/Z Feed rateM/min
1-5
1-5
X/Y/Z Servo powerkW(HP)
6/6/4
6/6/4
ATC
NO. of tools
32
32
Max. tool weightkg
7
14
Max. tool Dia ( No adjacent)
120
215
Spindle
Spindle speed  rpm
10000
6000
Spindle taper
#40
#50
Spindle power  kW(HP)
15(20)
15(20)
General
Weightkg(lbs)
≒30000(66000)
≒30000(66000)
Power capacitykVA
40
40
Pneumatic source requirementbar
6
6

LX3225 大型龍門加工中心機

Model LX3225
Travel
X axis travel

mm(in)
3200(125.9)
Y axis travel
mm(in)
2500(98.4)
Z axis travel
mm(in)
1000(39.7)
Spindle nose to table
mm(in)
200-1200(8.26-47.6)
Table
Table height
mm(in)
905(35.6)
T solt size
11-22Tx200
Table Max.loadkg(lbs)
12000(26400)
Table size
mm(in)
3000x2300(118x90.5)
Feedrate
X/Y/Z Rapid traverseM/min
10/10/10
X/Y/Z Feed rateM/min
1-5
X/Y/Z Servo powerkW(HP)
6/6/4
ATC
NO. of tools
32
Max. tool weightkg
14
Max. tool Dia ( No adjacent)
215
Spindle
Spindle speed rpm
6000
Spindle taper
#50
Spindle power   kW(HP)
6/6/4
General
Weightkg(lbs)
≒34000(74800)
Power capacitykVA
40
Pneumatic source requirementbar
6

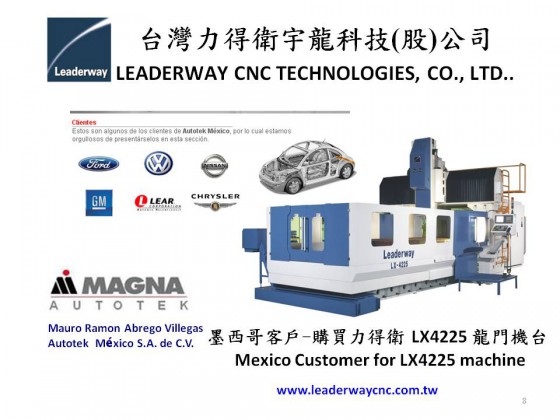

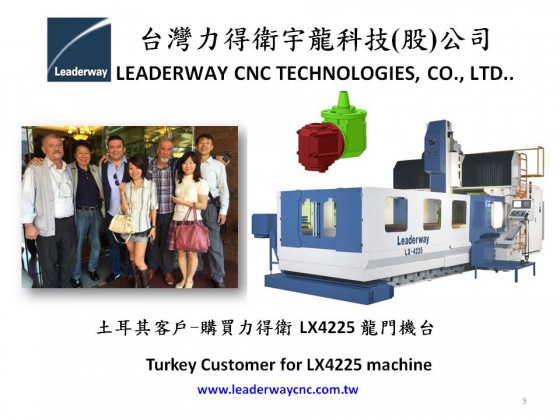

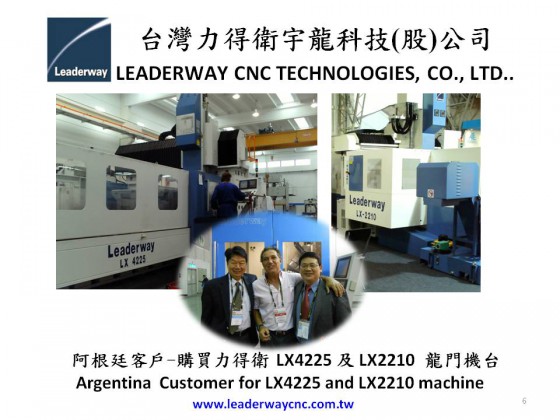

LX4225 大型龍門加工中心機

Model LX4225
Travel
X axis travel
mm(in)

4200(165.3)
Y axis travel
mm(in)
2500(98.4)
Z axis travel
mm(in)
1000(39.7)
Spindle nose to table
mm(in)
200-1200(7.8-47)
Table
Table height
mm(in)
905(35.6)
T solt size
11-22Tx200
Table Max.loadkg(lbs)
15000(33000)
Table size
mm(in)

4000x2300(157x90.5)
Feedrate
X/Y/Z RapidM/min
10/10/10
X/Y/Z Feed rateM/min
1-5
X/Y/Z Servo powerkW(HP)
6/6/4
ATC
NO. of tools
32
Max. tool weight
14
Max. tool Dia ( No adjacent)
215
Spindle
Spindle speed  rpm
6000
Spindle taper
#50
Spindle power  kW(HP)
15(20)
General
Weightkg(lbs)
≒40000(88000)
Power capacitykVA
40
Pneumatic source requirementbar
6

LX5225 大型龍門加工中心機

Model LX5225
Travel
X axis travel

mm(in)
5200(204.7)
Y axis travel
mm(in)
2500(98.4)
Z axis travel
mm(in)
1000(39.7)
Spindle nose to table
mm(in)
200-1200(7.8-47)
Table
Table height
mm(in)
905(35.6)
T solt size
11-24Tx200
Table Max.load
kg(lbs)
18000(39600)
Table size
mm(in)
5000x2300(197x90.5)
Feedrate
X/Y/Z Rapid traverseM/min
10/10/10
X/Y/Z Feed rateM/min
1-5
X/Y/Z Servo powerkW(HP)
6/6/4
ATC
NO. of tools
32
Max. tool weightkg
14
Max. tool Dia ( No adjacent)
215
Spindle
Spindle speed rpm
6000
Spindle taper
#50
Spindle power kW(HP)
15
General
Weightkg(lbs)
≒46000(101200)
Power capacitykVA
40
Pneumatic source requirementbar
6
