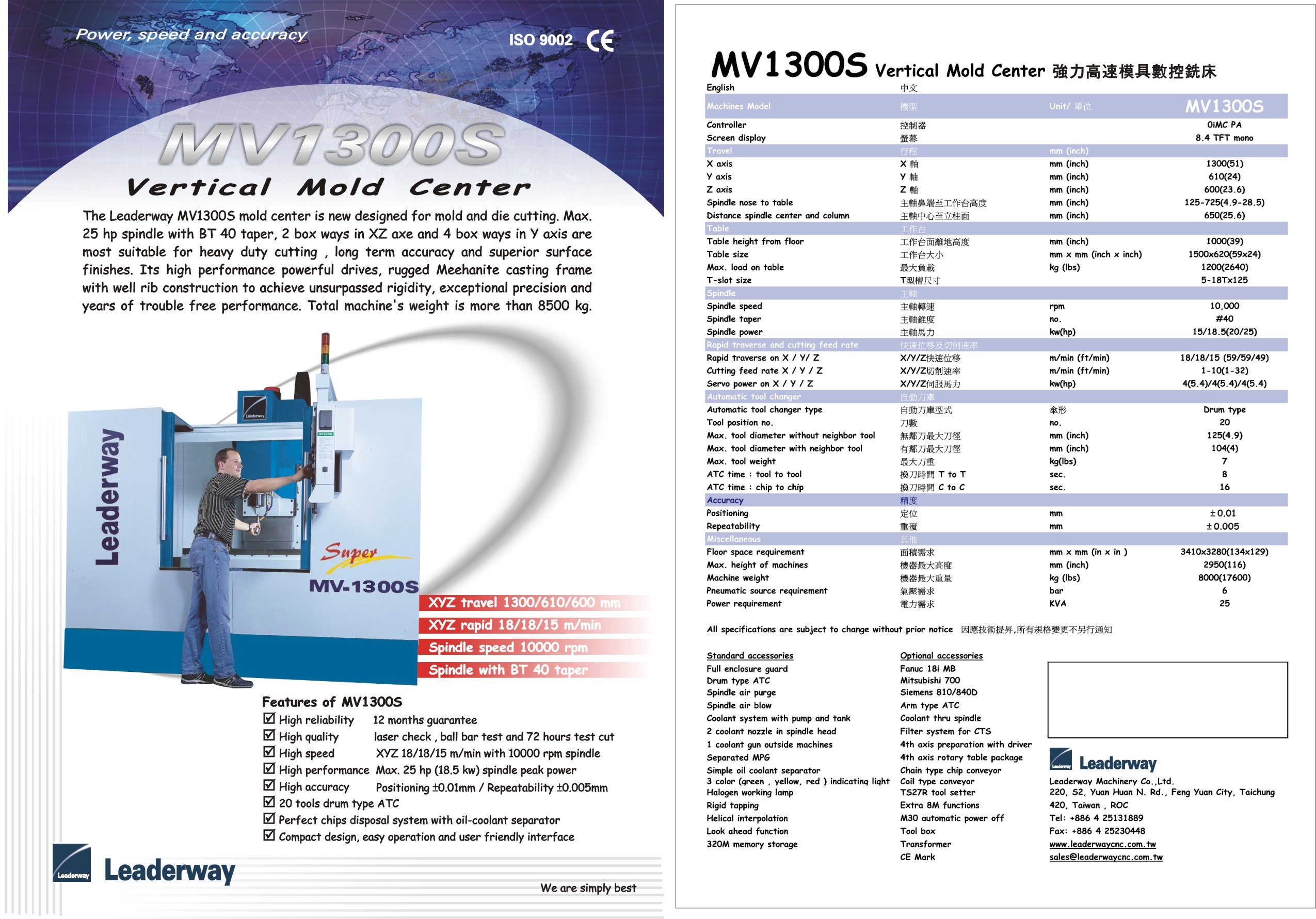

| Model |
MV1300S |
| Travel |
|
X axis travel |
1300(51) |
| Y axis travel |
610(24) |
| Z axis travel |
600(23.6) |
| Spindle nose to table |
105-705(4.13-27.7) |
| Table |
|
| Table height |
1020(40.15 |
| T solt size |
5-18Tx125 |
| Table Max.load |
1200(2640) |
| Table size |
1500x620(59x24) |
| Feedrate |
|
| X/Y/Z Rapid traverse |
20/20/18 |
| X/Y/Z Feed rate |
1-10 |
| X/Y/Z Servo power |
4(5.4) |
| ATC |
|
| NO. of tools |
24 |
| Max. tool weight |
7 |
| Max. tool Dia ( No adjacent) |
125 |
| Spindle |
|
| Spindle speed |
10000 |
| Spindle taper |
#40 |
| Spindle motor |
15/18.5(20/25) |
| General |
|
| Weight |
≒8000(17600) |
| Power capacity |
25 |
| Pneumatic source requirement |
|
|
