| Model |

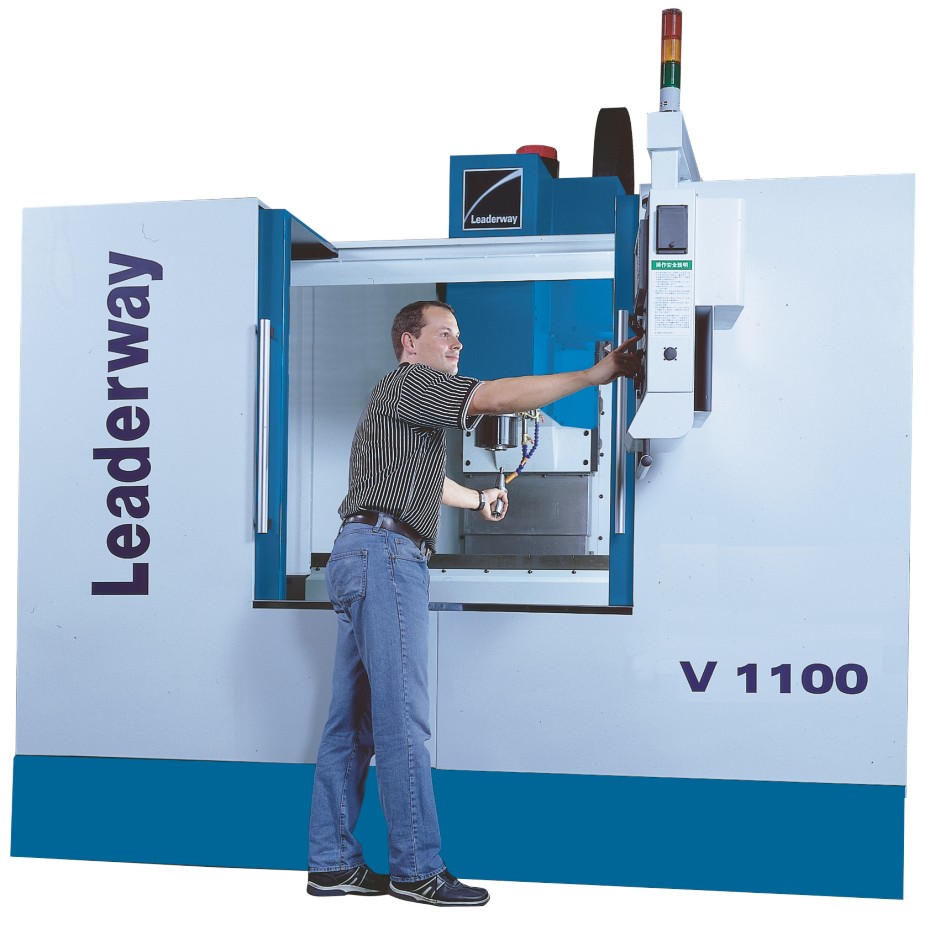

V1100 |
| Travel |
|
X axis travel |
1100(43) |
| Y axis travel |
610(24) |
| Z axis travel |
600(23.6) |
| Spindle nose to table |
115-715(4.5~28.1) |
| Table |
|
| Table height |
1010(39.7) |
| T solt size |
5-18Tx125 |
| Table Max.load |
800(1760) |
| Table size |
1350x600(53x23.6) |
| Feedrate |
|
| X/Y/Z Rapid traverse |
24/24/20 |
| X/Y/Z Feed rate |
1-10 |
| X/Y/Z Servo power |
4(5.4) |
| ATC |
|
| NO. of tools |
20 |
| Max. tool weight |
7 |
| Max. tool Dia ( No adjacent) |
125 |
| Spindle |
|
| Spindle speed |
10000 |
| Spindle taper |
#40 |
| Spindle motor |
15/18.5(20/25) |
| General |
|
| Weight |
≒7000(15400) |
| Power capacity |
25 |
| Pneumatic source requirement |
|
|
