| Model |

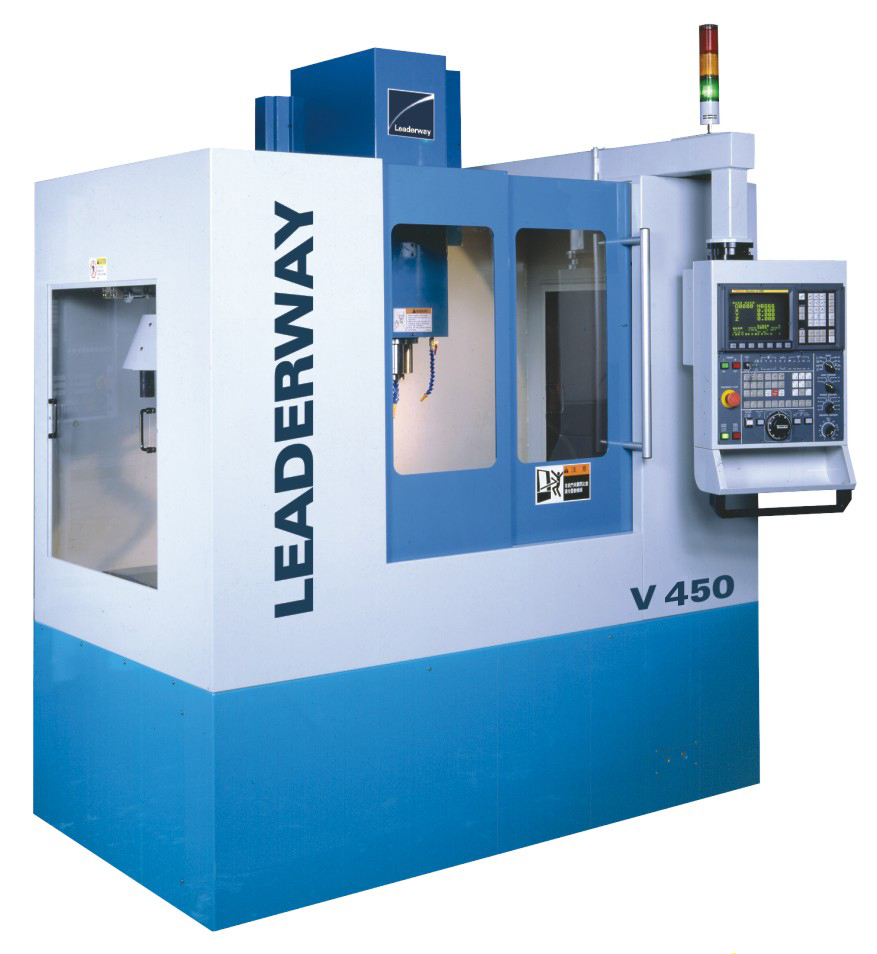

V450 |
| Travel |
|
X axis travel |
450(17.7) |
| Y axis travel |
350(13.7) |
| Z axis travel |
400(15.7) |
| Spindle nose to table |
125-525(4.9~20.6) |
| Table |
|
| Table height |
900(35.4) |
| T solt size |
3-18Tx125 |
| Table Max.load |
250(550) |
| Table size |
620x350(24.4x13.7) |
| Feedrate |
|
| X/Y/Z Rapid traverse |
20/20/16 |
| X/Y/Z Feed rate |
1-10 |
| X/Y/Z Servo power |
1.2(1.6) |
| ATC |
|
| NO. of tools |
10 |
| Max. tool weight |
7 |
| Max. tool Dia ( No adjacent) |
125 |
| Spindle |
|
| Spindle speed |
10000 |
| Spindle taper |
#40 |
| Spindle motor |
7.5/11(10/14.6) |
| General |
|
| Weight |
≒3800(8360) |
| Power capacity |
15 |
| Pneumatic source requirement |
|
|
