| Model |

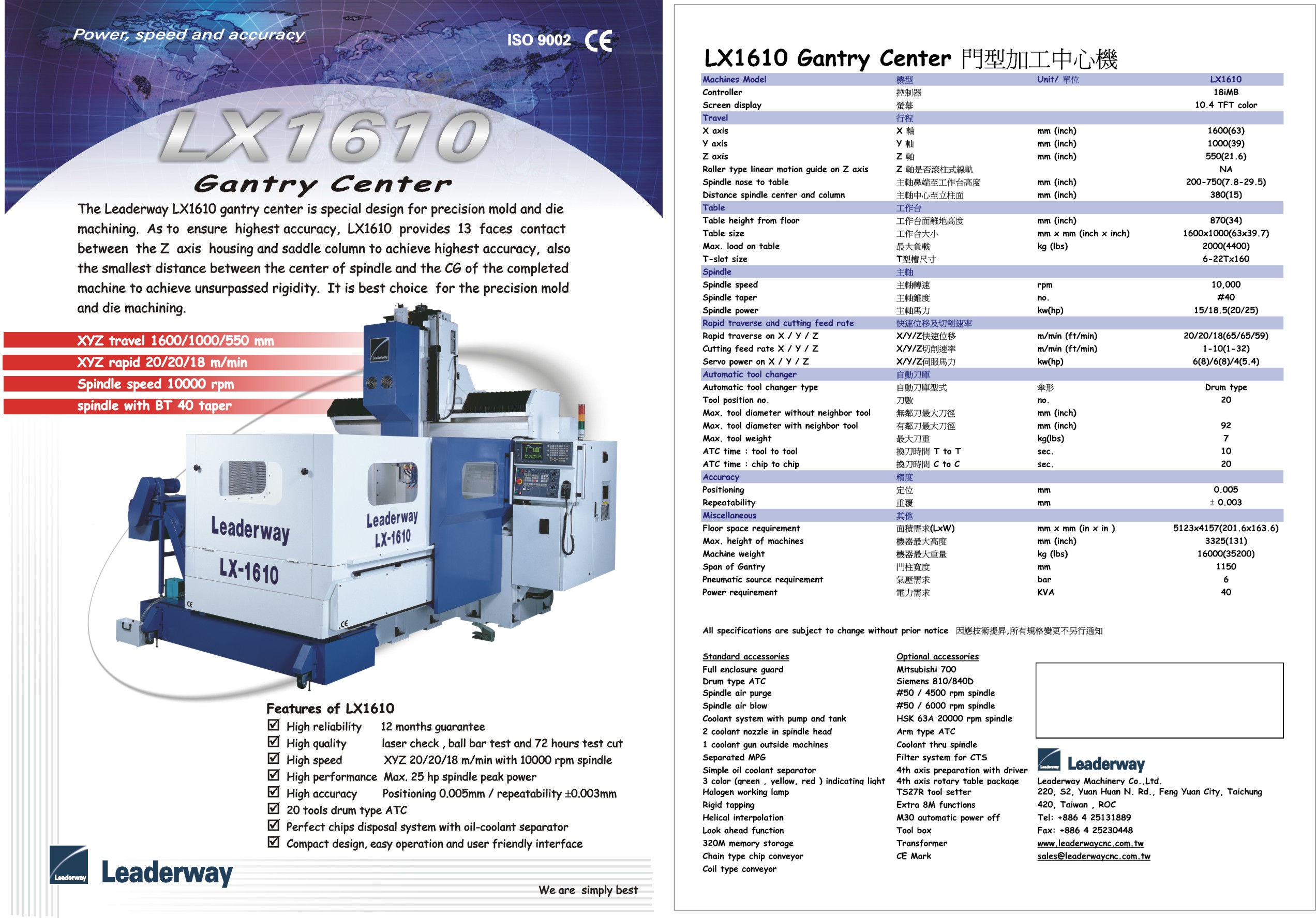

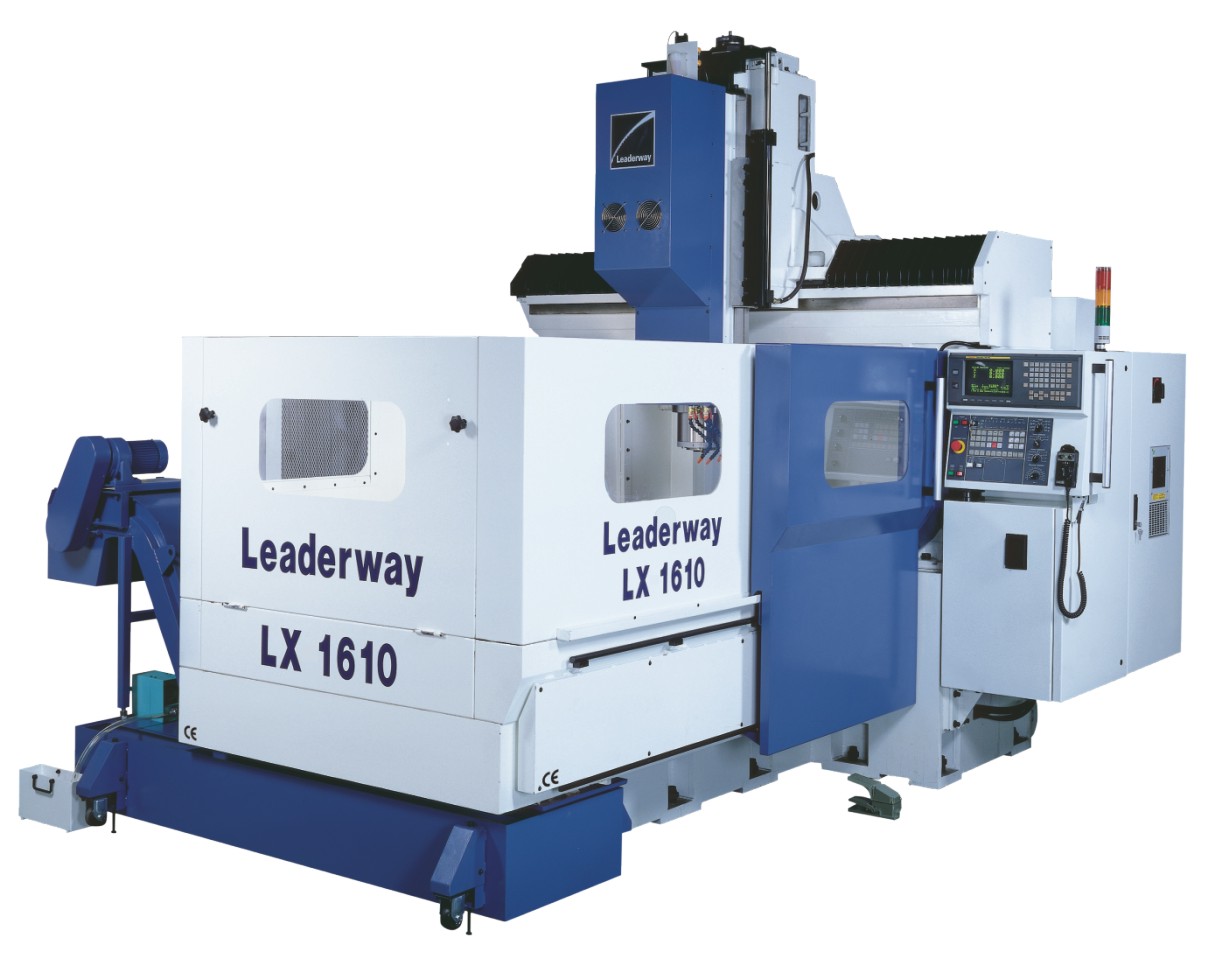

LX1610 |
| Travel |
|
X axis travel |
1600(63) |
| Y axis travel |
1000(39) |
| Z axis travel |
550(21.6) |
| Spindle nose to table |
200-750(7.8-29.5) |
| Table |
|
| Table height |
825(32.4) |
| T solt size |
6-22Tx160 |
| Table Max.load |
2000(4400) |
| Table size |
1600x1000(63x39.7) |
| Feedrate |
|
| X/Y/Z Rapid traverse |
20/20/18 |
| X/Y/Z Feed rate |
1-10 |
| X/Y/Z Servo power |
6/6/4 |
| ATC |
|
| NO. of tools |
20 |
| Max. tool weight |
7 |
| Max. tool Dia without neghbor tool |
NA |
| Spindle |
|
| Spindle speed |
10000 |
| Spindle taper |
#40 |
| Spindle power |
7.5(9) |
| General |
|
| Weight |
≒17000(37400) |
| Power capacity |
40 |
| Pneumatic source requirement |
|
|
