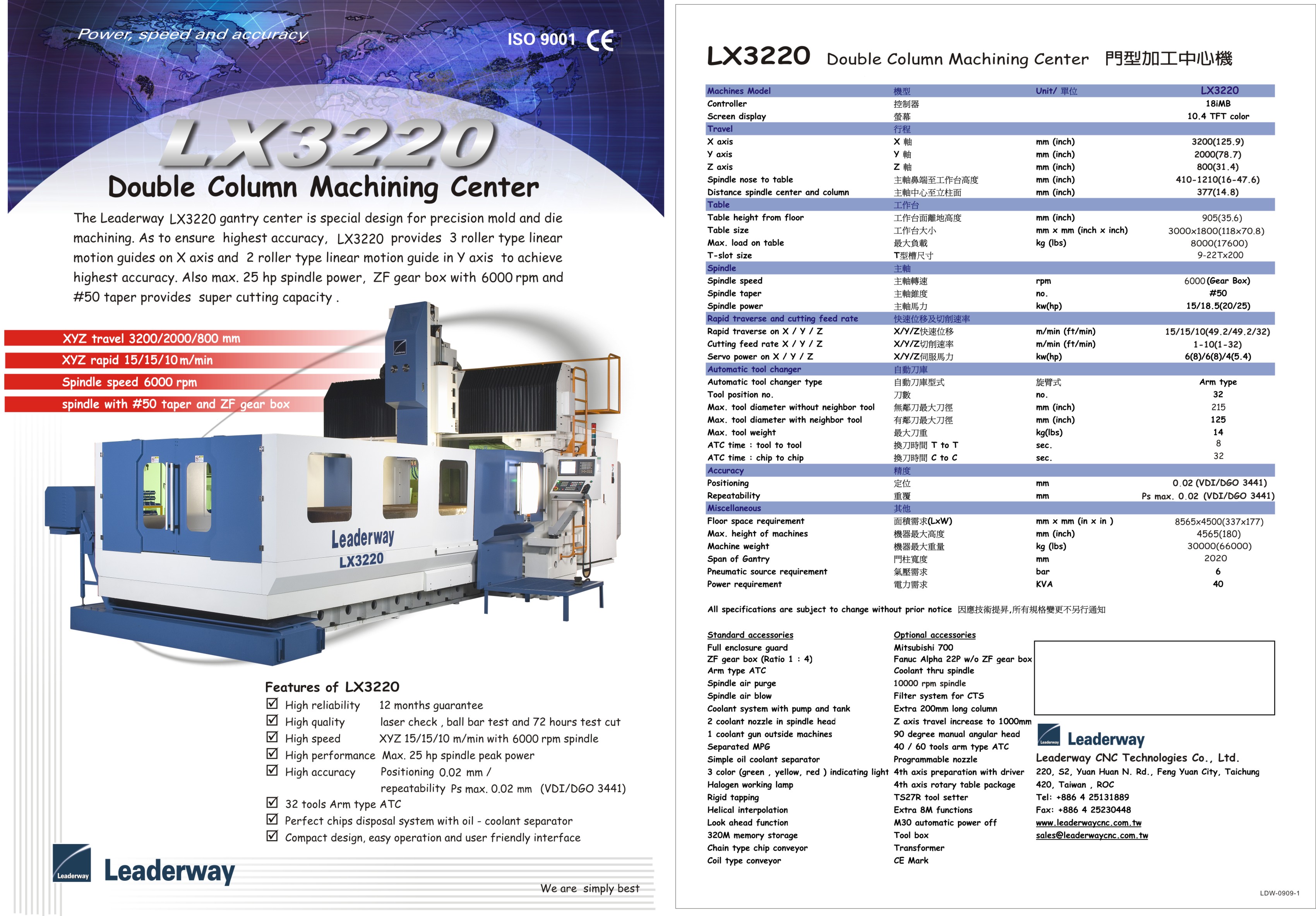

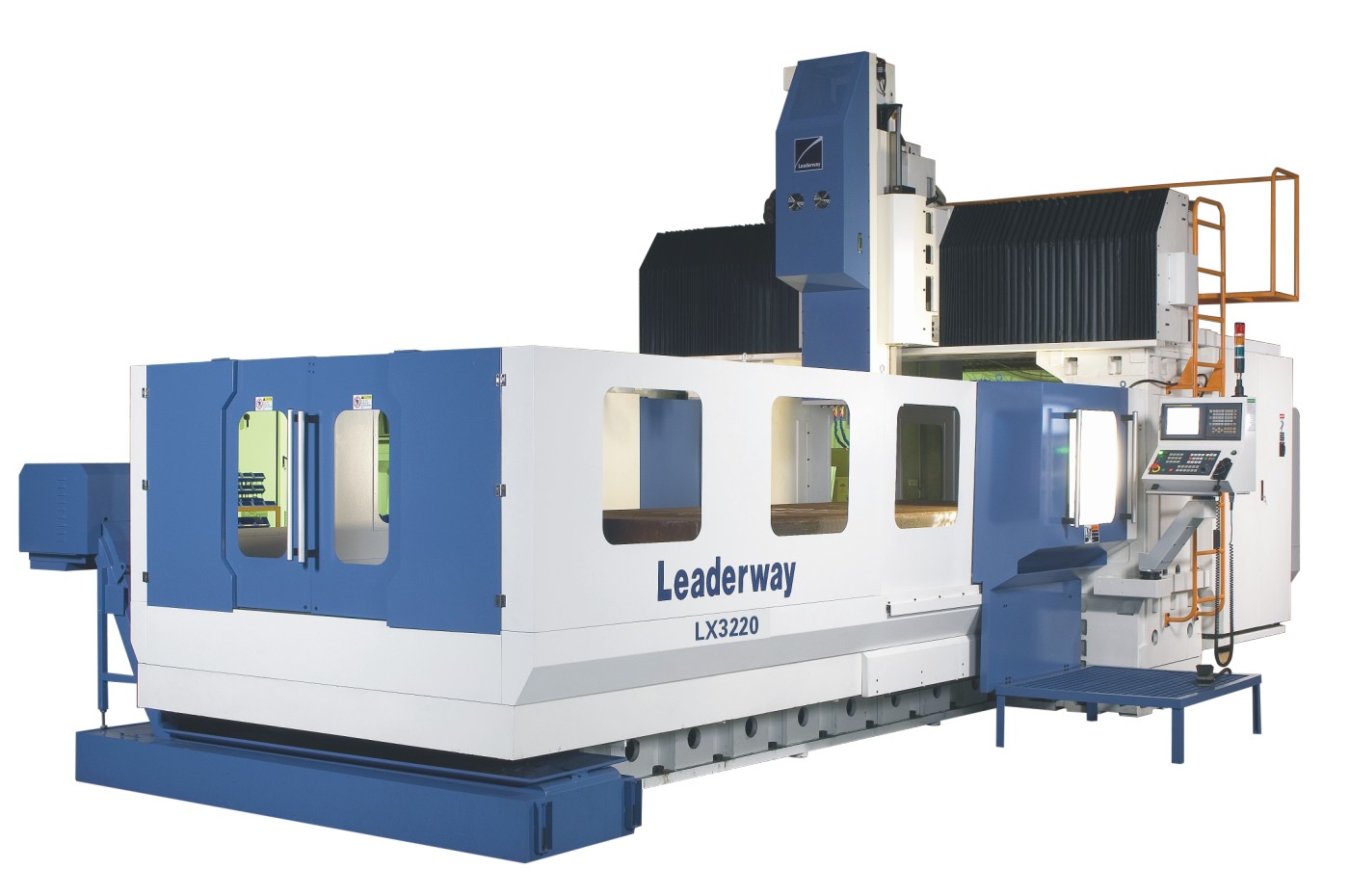

| Model |
LX3220#40 |
LX3220#50 |
| Travel |
|
|
X axis travel |
3200(125.9) |
3200(125.9) |
| Y axis travel |
2000(78.7) |
2000(78.7) |
| Z axis travel |
1000(39.7) |
1000(39.7) |
| Spindle nose to table |
210~1210(8.26-47.6) |
200~1200(7.8-47) |
| Table |
|
|
| Table height |
905(35.6) |
905(35.6) |
| T solt size |
9-22Tx200 |
9-22Tx200 |
| Table Max.load |
8000(17600) |
8000(17600) |
| Table size |
3000X1800(118X70.8) |
3000X1800(118X70.8) |
| Feedrate |
|
|
| X/Y/Z Rapid traverse |
15/15/10 |
15/15/10 |
| X/Y/Z Feed rate |
1-5 |
1-5 |
| X/Y/Z Servo power |
6/6/4 |
6/6/4 |
| ATC |
|
|
| NO. of tools |
32 |
32 |
| Max. tool weight |
7 |
14 |
| Max. tool Dia ( No adjacent) |
120 |
215 |
| Spindle |
|
|
| Spindle speed |
10000 |
6000 |
| Spindle taper |
#40 |
#50 |
| Spindle power |
15(20) |
15(20) |
| General |
|
|
| Weight |
≒30000(66000) |
≒30000(66000) |
| Power capacity |
40 |
40 |
| Pneumatic source requirement |
6 |
|
|
