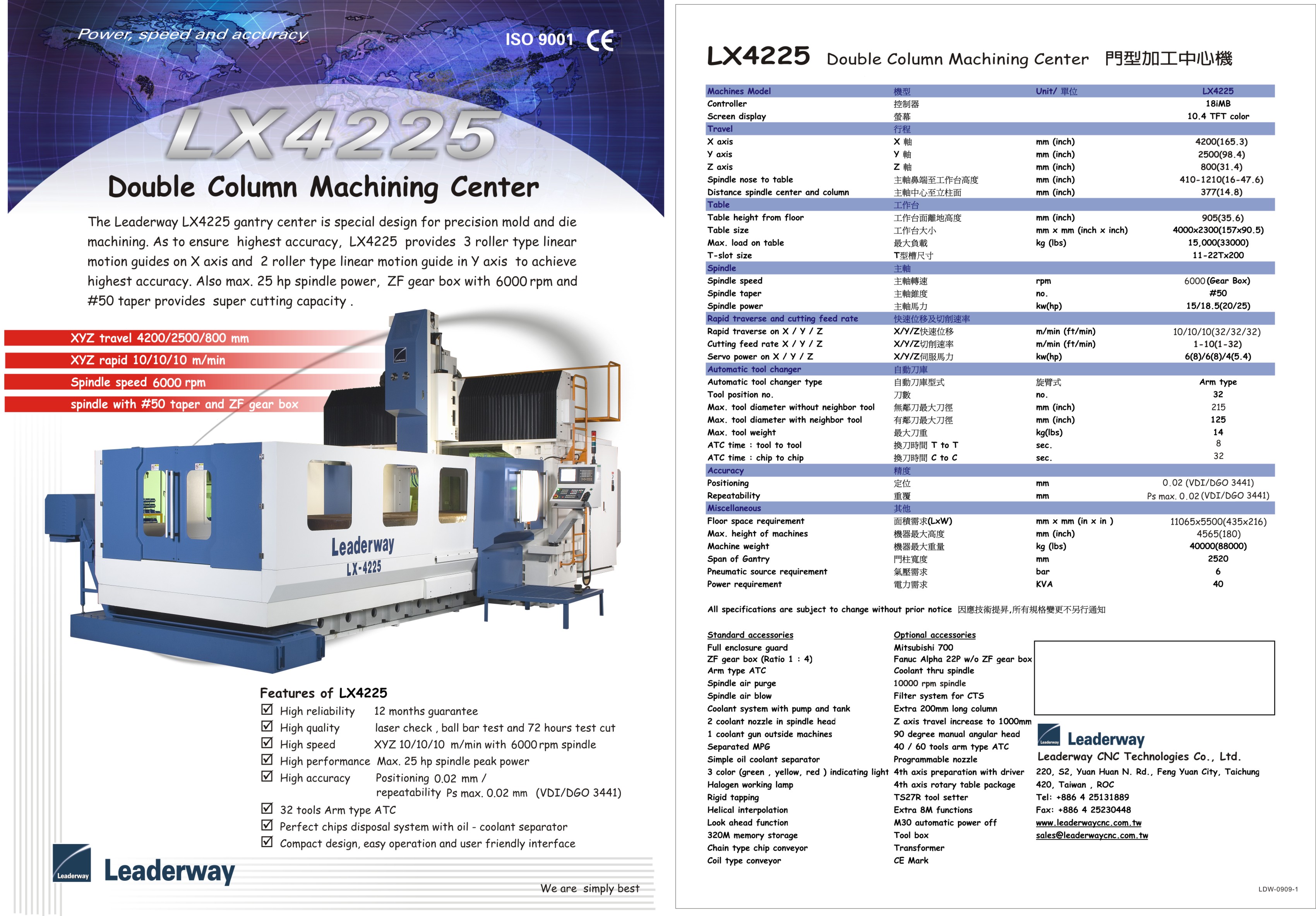

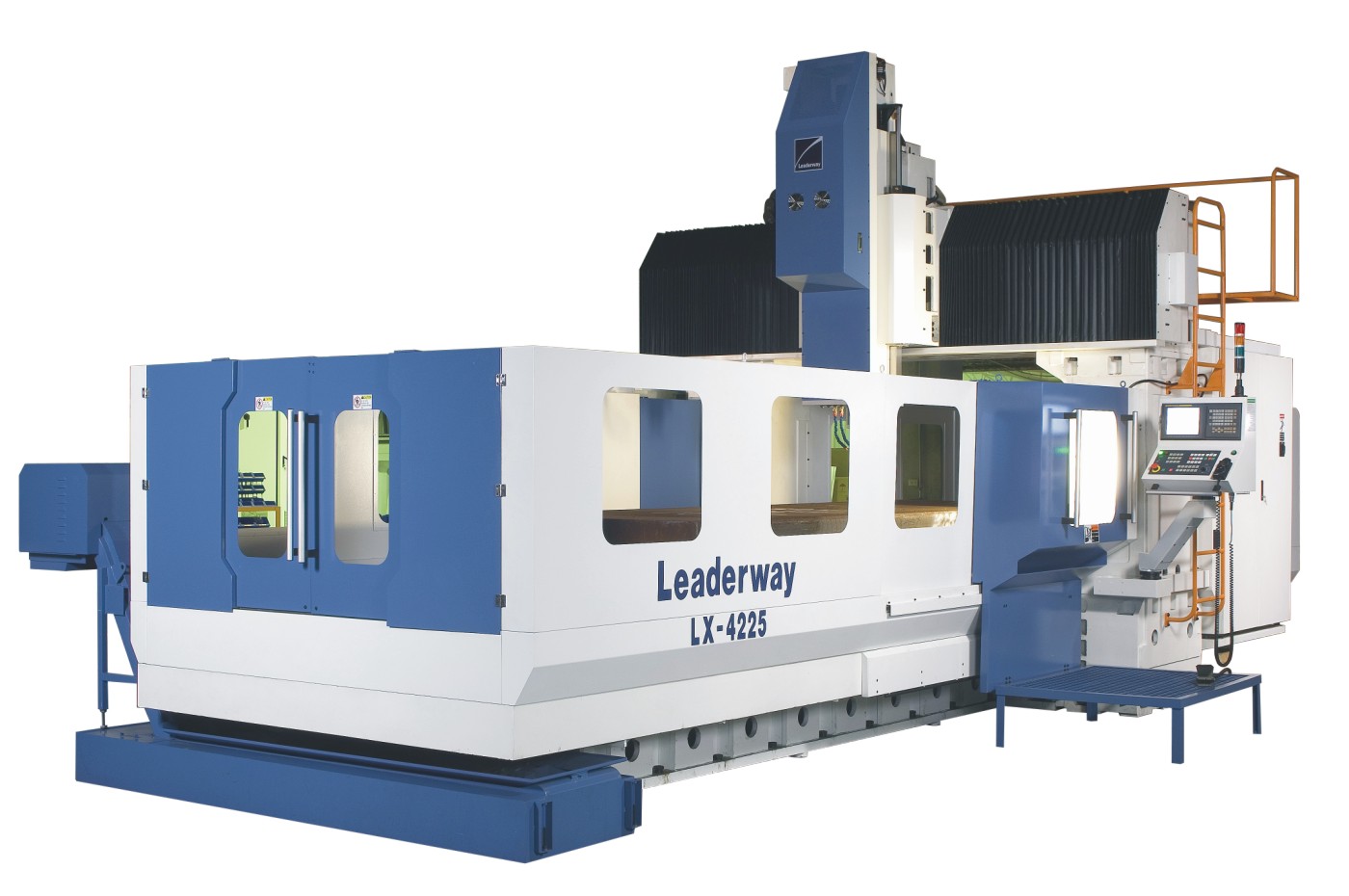

| Model |
LX4225 |
| Travel |
|
X axis travel |
4200(165.3) |
| Y axis travel |
2500(98.4) |
| Z axis travel |
1000(39.7) |
| Spindle nose to table |
200-1200(7.8-47) |
| Table |
|
| Table height |
905(35.6) |
| T solt size |
11-22Tx200 |
| Table Max.load |
15000(33000) |
| Table size |
4000x2300(157x90.5) |
| Feedrate |
|
| X/Y/Z Rapid traverse |
10/10/10 |
| X/Y/Z Feed rate |
1-5 |
| X/Y/Z Servo power |
6/6/4 |
| ATC |
|
| NO. of tools |
32 |
| Max. tool weight |
14 |
| Max. tool Dia ( No adjacent) |
215 |
| Spindle |
|
| Spindle speed |
6000 |
| Spindle taper |
#50 |
| Spindle power |
15(20) |
| General |
|
| Weight |
≒40000(88000) |
| Power capacity |
40 |
| Pneumatic source requirement |
|
|
